การทำงาน

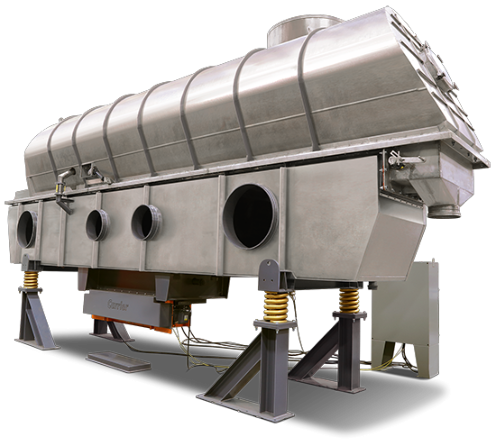

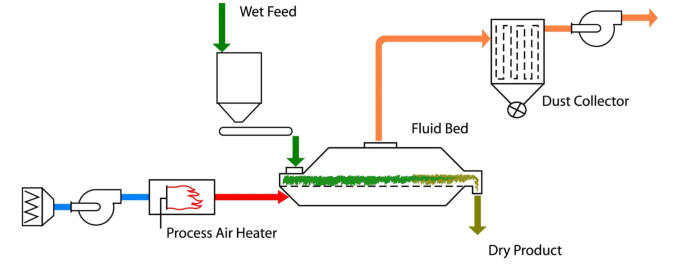

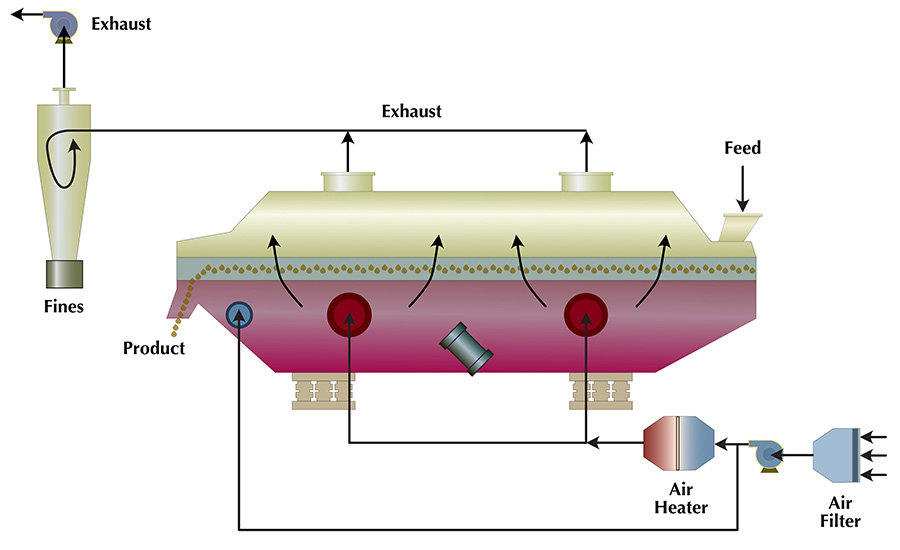

The working principle of Fluid-bed dryer is
that materials go into the machine from feed
inlet. Under the vibratory force, the materials
are thrown along the horizontal fluid bed and
move forward continuously. After the hot air
goes upward through the fluidized bed and a
heat exchange with wet materials, the wet air
is dedusted by cyclone separator and then
discharged from air exhaust in 1:3.
APPLICAITON
This machine is applicable for drying and cooling powdery and
granular materials food, dehydrated vegetables, grain, mineral
and other industries. Such as: citric acid, monosodium
glutamate, borax, ammonium sulfate, compound fertilizer,
shredded radish, soybean meal, distillers grains, seeds, slag,
sugar and so on.
FEATURES
Vibration amplitude is driven by vibration motor, smooth operation, easy
maintenance, low noise, long life.
Fluidized symmetry, no dead gaps and broken phenomenon, which enable uniform
dried and cooled products Adjustable, wide scope of application. Material thickness,
speed of movement within the machine and total amplitude can all achieve stepless
adjustment. Small damage to the surface of the material, available for drying of
friable material, when irregular particles will not affect work results.
Totally enclosed structure, effectively preventing cross infection between the
material and the air. Clean working environment.
High mechanical efficiency and thermal efficiency, perfect energy-saving effect,
about more 30 %-60 % energy than average drying device .with 30 %-60 % energy
saved comparing with average drying devices
เครื่องลดความชื้น ทำงานต่อเนื่อง
